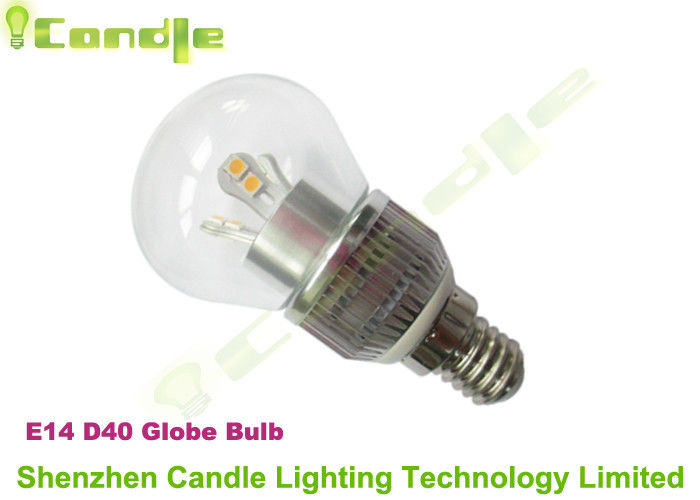

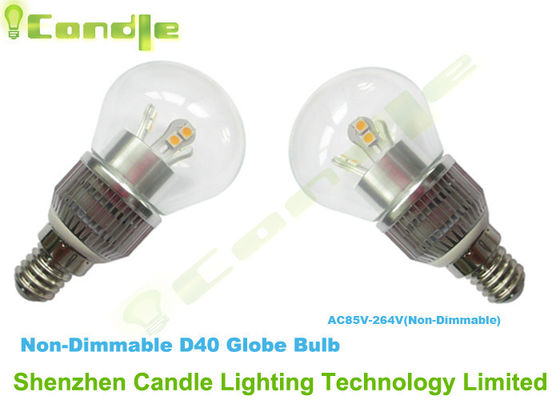

Base E14 Super Bright 5w Led Globe Bulb 360 Degree Viewing Angle Transparent Glass CE RoHS
Quick Detail:
1. Shell: Transparent Glass
2. Working Temperature(°C): -25-+45
3. LED Chips: Epistar
4. LED Type: SMD2835 5630
5. CRI: Ra>85
6. Name: 5w-E14-Transparent Glass- D40-Led Globe Bulb
Led Globe Bulb Instruction
·No infrared and UV. No fickly and no harm to human
·Environment -friendly, and 80~90% energy saving
·Luminous flux is up to 100 lm/W. Over 50000 hours lifespan
·E14/E17 /B15 base are available for the bulb light,
·Voltage: 85-264V, smart constant current control circuit to eliminate flicker and ripple, spot smooth natural light;
·Famous for no heat, low current and low voltage, small volume, light weight , high efficiency .and energy saving
·High efficiency .brighter than the traditional incandescent and fluorescent lights;
·Excellent color rendering it makes the illuminated object looks natural and vividly
·CE and ROHS certificated
Led Globe Bulb Specifications:
|
Product Model
|
KDL-CBL-5W-A40-E14
|
|
Power
|
Led 5.0w
|
|
Viewing Angle
|
360 degree ±5 degree
|
|
Color Consistency
|
Variation of chromaticity coordinates within a six-step Macadam ellipse or less
|
|
Color Temperature (Optional)
|
2200K-6500K,or customized
|
|
Conversion
Efficiency
|
>75%
|
|
Power Factor
|
>0.85
|
|
Operating Temperature
|
-20 degrees C to 45 degrees C
|
|
Size
|
H94 millimeters*D30 millimeters
|
|
Working Life
|
50000H
|
|
Warranty period
|
3 years
|
|
N.W.
|
36g±5g
|
|
Packing
|
100pcs/Carton
|
|
Authentication
|
CE
|
|
CRI (Optional)
|
CRI≥80
|
CRI≥90
|
|
Luminous Flux
|
320lm-400lm
|
300lm-380lm
|
|
Light Base
(Optional)
|
Material:
|
copper plating
|
Copper, Iron, Aluminum
|
|
Type:
|
E12 / E14 / B15 / E17 / B22 / E26 / E27
|
|
Light Shell
|
Material:
|
shatterproof glass(Special processing technology)
|
|
Color(Optional):
|
milky white / frosted / clear
|
|
Lamp House(Optional)
|
Type:
|
5630 / 2835
|
|
Brand:
|
Epistar
|
customize other brands
|
|
PCB
|
Thermal conductivity:
|
2W/m.k
|
|
Thickness:
|
1.2mm
|
|
Dimmable (Optional)
|
Dim
|
No-Dim
|
|
Vin (Optional)
|
AC85V-130V / 50-60HZ AC170V-264V / 50-60HZ
|
AC85V-264V / 50-60HZ
|
|
Led Driver
|
Constant current isolate power supply
|
|
Capacitor:
|
anti high temperature of 135°
|
|

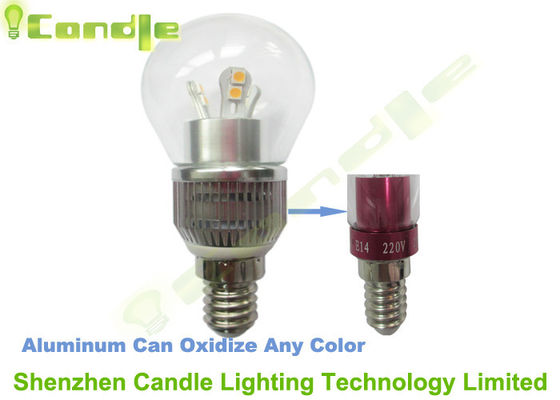

Heatsink
|
Material:
|
AL1070
|
|
Thermal conductivity:
|
226w/m.k
|
|
Process:
|
Integrated cold forging
|
|
Color(Optional):
|
any color
|
|
Accessories
|
Silicone:
|
Imported brands
|
|
Thermal grease:
|
Imported brands
|
|
Thermal conductivity:6W/m.k
|
