Place of Origin: | Guangdong,China (Mainland) |
Brand Name: | Candle |
Certification: | CE |
Model Number: | KDL-CBL-7W-B60-B15 |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | 100pcs/Carton |
Delivery Time: | 3-5 working days for samples |
Payment Terms: | T/T |
Supply Ability: | 80,000~100,000pcs/month |
Highlight: | led globe light bulb |
---|

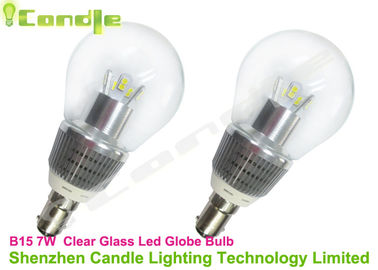

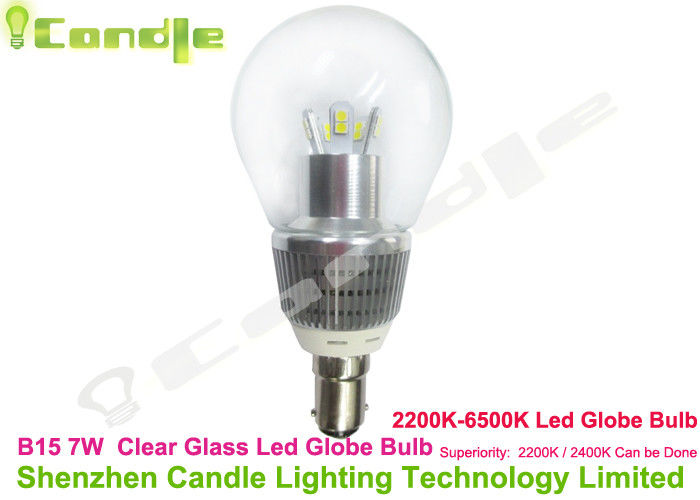

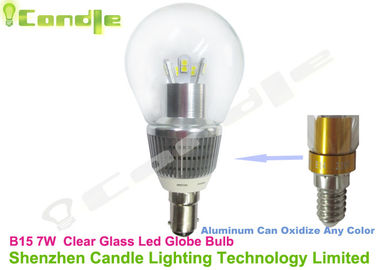

7w B15 Led Globe Bulb High Power Clear Glass 360 Degree Beam Angle Ra80 Dimmable CE
Quick Detail:
1. Base type: Bayonet B15
2. Beam Angle: 360°
3. Working Temperature : -20°C~45°C
4. Logo Without or custom designed
5. CRI: Ra>80
6. Name: 7w-B15-Clear Glass- Led Globe Bulb
Led Globe Bulb Features:
1, The LED Bulb can replace traditional incandescent lamp and sodium lamp directly.
2, The LED Bulb lifespan is more than 10 times than traditions lamp.
3, Unique thermal design and professional light distribution, ensure the products heating temperature is less than 50 degrees and with high brightness uniform luminance.
4, Unique design, good looking and fashion.
5, B15 Base
6, Long lifespan, the LEDs’can be up to 50,000 hours.
7, 180 degree PMMA frosting lens with light transmission rate at 90%
8, Can be dimmable, dimming range 3%-100%
Led Globe Bulb Specifications:
Model Number |
KDL-CBL-7W-B60-B15 |
Main Export Markets |
Europe / North America / Australasia |
Lighting Source |
Type:5630 / 2835 |
Chip brand: ES |
|
Total Power |
7W |
Lighting Angle |
360 |
Diffuser (Optional) |
Clear Glass cover |
Base (Optional) |
B15 |
Light Color(Optional) |
Warm White / Natural White / White |
Dimmable |
Available |
CRI |
Ra>80 |
Luminous Flux |
550lm-750lm |
Colour Consistency |
Color Tolerance<6 SDCM |
PCB |
Thermal conductivity: 2W/m.K |
Thickness: 1.2mm |
|
Led Driver |
Constant Current Isolate Power Supply |
Capacitor: Anti high temperature of 135° |
|
Heat Sink |
Material: AL1070 |
Thermal conductivity:226w/m.k |
|
Process: Integrated cold forging |
|
Silicone |
Imported brands |
Thermal Grease |
Imported brands |
Thermal conductivity:6W/m.K |
|
Input Voltage |
AC85~265V/50Hz~60Hz |
Conversion Efficiency |
>85% |
Power Factor |
>0.90 |
Working Temp. |
-20℃ ~ +45℃ |
Size |
H118*D60mm |
Working Lifetime |
50,000H |
Warranty |
3 years |
Net Weight |
69g±5g |
Package |
100pcs/Carton |
Certification |
CE certification, |
Led Globe Bulb Application:
1) Hotel, restaurant, office, all of indoor public places
2) Commercial lighting and industrial lighting
3) Cabinet, showcare, and small areas
4) Especially home indoor lighting
Led Globe Bulb Cautions:
1) LED bulb light is non-water proof and only used in indoor
2) Switch off electricity before replacing the lamp
3) Keep away from direct sunshine and high temperature
4)) If any doubt installation or use of this product,please read manual or consult us
5) If you need waterproof LED ball steep light can contact our custom.
