Place of Origin: | Shenzhen China |
Brand Name: | Raymates |
Certification: | CE ROHS FCC |
Model Number: | 4Ft, T8-3014-20w |
Minimum Order Quantity: | 5pcs |
---|---|
Packaging Details: | Individually Packed |
Delivery Time: | 3-5days |
Payment Terms: | T/T Western Union Paypal Bank Transfer |
Supply Ability: | 50000 Piece/Pieces / Month |
Luminous Efficiency: | 70~110LM/W | LED Qty.: | 168 Pc |
---|---|---|---|
Product Name: | Led Tube T8 | Power: | 20W |
Voltage: | AC85~265V | LED Chip Brand: | Bridgelux |
IP Grade: | IP54 | Life Span: | >30000hrs |
Certification: | CE, RoHS, FCC | Driver: | Isolated Driver |
Length: | 4 Feet | Color Temperature: | CW(6000-7000K)|PW(4000-5500K)|WW(2700-3500K) |
Feature: | Brightest|fluorescent|for Home|Indoor | Application: | Factory|hospital|hotel|indoor|interior|office|school|supermarket |
Highlight: | T8 LED Tube Light |

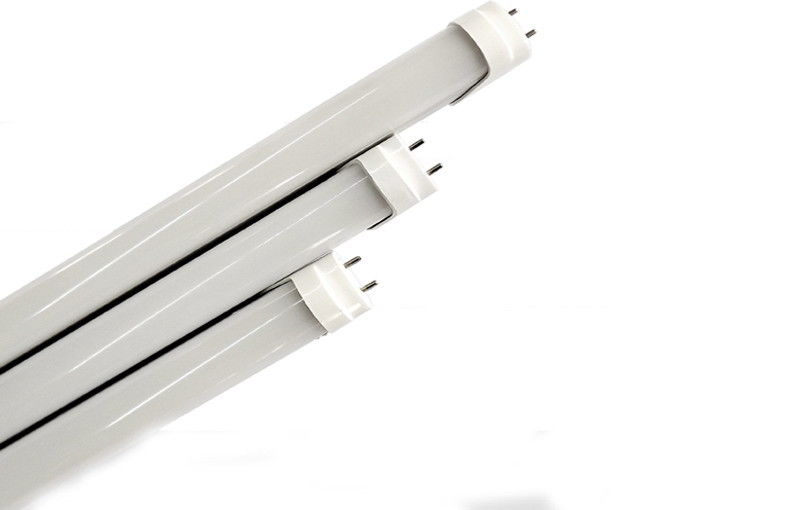

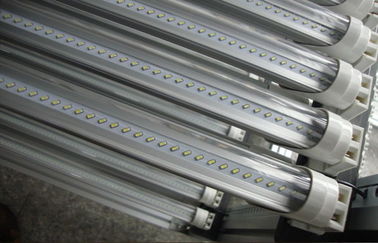

Indoor 20W T8 LED Tube Light , 4 Feet SMD3014 Epistar Chip Commercial Lighting
Quick Detail:

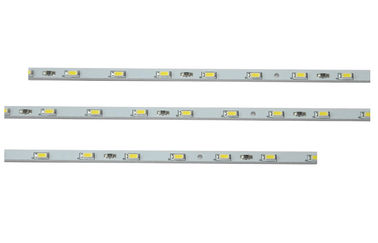

1.SMD3014 T8 LED Tube
2.isolated driver
3.20w 4ft length
4.85v-265v AC input voltage
5.CE&ROHS&FCC certification
6.192pcs led chip
Description:
SMD3014 T8 LED Tube,20w high power,1650lm high brightness,Isolated Power driver,120º beam projection,192pcs led chip,Low emitted heat,thick material good for cooling systerm and a longer lifetime,AC85v-265v input voltage,ce&rohs&fcc passed.
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
Specifications:
Tech Date |
|
|
Model |
4Ft, T8-3014-20w |
|
LED Qty |
192 pcs |
|
LED Driver |
Isolated Power driver |
|
LED Power |
20W |
|
LED Color |
Warm white, Pure white, Cool white |
|
Input Voltage |
AC85~265V |
|
Frequency Range |
50Hz – 60Hz |
|
Power Factor |
>98 |
|
Power Efficiency |
>85% |
|
Luminous Efficiency |
90~100LM/W |
|
Color Temperature |
WW |
2700K-3500K |
PW |
4000K-5500K |
|
CW |
6000K-7000K |
|
CRI |
WW |
Ra>70 |
PW |
Ra>75 |
|
CW |
Ra>75 |
|
Lamp Efficiency |
>85% |
|
Lumens Output |
1650lm-1750lm |
|
Beam Angle |
120° |
|
Working Temperature |
-40℃ ~ +55℃ |
|
Storage Temperature |
-25℃ ~ +65℃(25℃best) |
|
Life span |
>50000hrs |
|
Certification |
CE, RoHS, FCC |
|
IP Grade |
IP54 |
|
Housing Color |
Silver |
|
Gross Weight |
0.6kg |
|
Dimension |
26mm*1198mm |
|
package |
L127CM*W22CM*H21CM (25pcs/Carton) |
Competitive Advantage:
Application scope: Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
