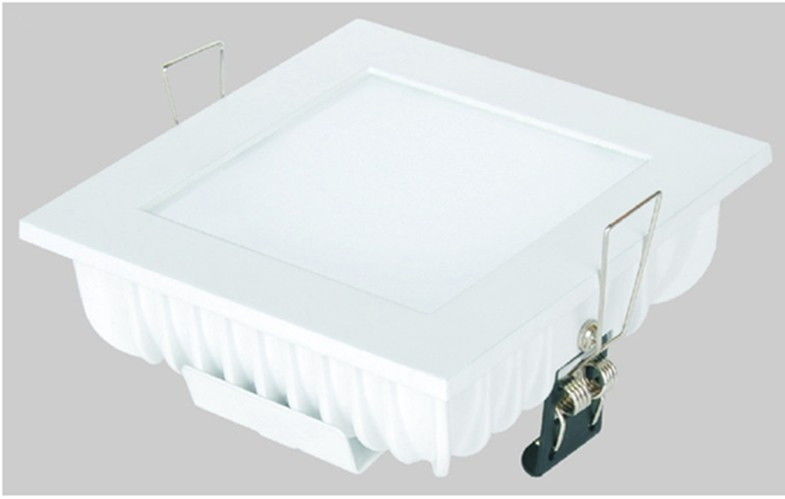

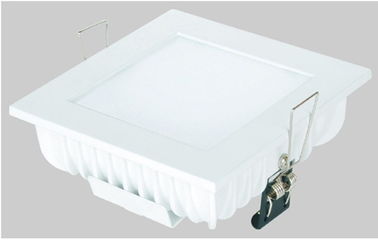

Square 160mm LED Recessed Downlights 20W Samsung 5630 , High Efficiency

Quick Detail:

• Model Number: FS-160-20W
• Item Type: LED Downlights
• LED Light Source: 36pcs Samsung 5630
• Private mold die-casting aluminum+ Glass lens
• Power: 20W±5%
• Input Voltage: 100~240V AC
• Lamp Luminous Efficiency: >73 lm/w
• CRI (Ra>): 80%
• Color Temperature(CCT): 2700K+5000K
• Working Temperature(℃): -20℃~40℃
• Working Lifetime(Hour): 40000
• Certification: CE, RoHS, SAA
• Warranty: 3years
• IP Rating: IP20


Structure features:


1. Superior heat emission structure with patented technology and power supply configuration, The light can work efficiently and safely. Lifespan more than 50000 hours.(the use of ambient temperature is 25℃)

       2.Optimized light distribution design solution can make the optical property more excellent. Pass on                the value of illumination spiritually.

Application:

    Widely used in hotels, restaurants, hypermarkets, shops, offices,supermarkets, museums and residential lighting and so on.

Main technical parameters:





IIIumination intensity chart:













Electrical connection:




Package diagram:




Packaging Parameters:


Installation steps(Notes):



Notes:
1: All dimensions are in millimeters.
2: Tolerance is±1mm unless otherwise specified.
3: Specifications are subject to change without notice
