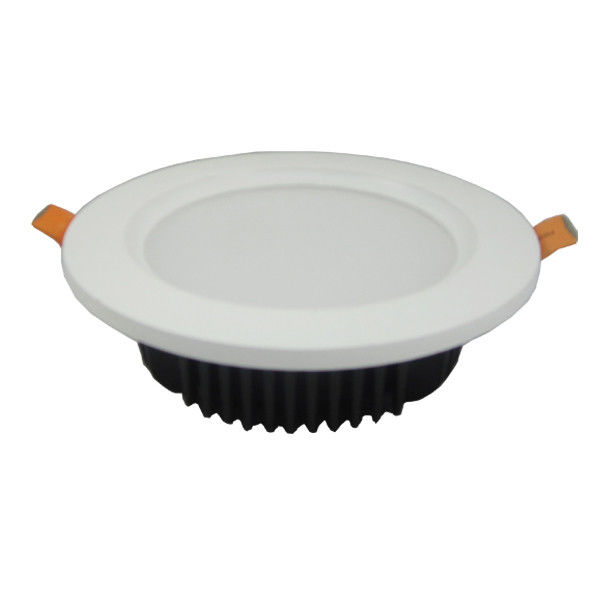

LED Recessed Downlights 123MM Cut Size 12W , Low Heat LED Round Recessed Down Light With Oxidation Brushing
Quick Detail:
Model Name: GH-DLC-12W
LED Chip: Samsung
Input Voltage: AC85~265V
Driver: External Isolated Constant Current Driver (GS,CB,SAA Approved)
Consumption Power:12W
Luminous Flux: 1000lm±5%
Beam Angle: 120°
Certificate: CE, RoHs
Color Temperature: Warm White / Nature White / Cold White
CRI: RA85
Dimension: Ø138*H50mm
Cut Size: Ø123mm (4Inch)
LED Light Source: 30PCS SMD5630
Finish Color: White + Black
Material: Aluminum+Frosted Acrylic Cover
Warranty: 3 Years
Competitive advantages:
Superior Anti Glare LED Downlight;
Samsung Chip, 85lm/Watt;
RA85, Thick Aluminum Alloy;
CE, RoHs;
Smoothy Surface, Attractive Apperance;
Strong Package to bear oversea transportation;
3 Years Warranty.
Description:
Adopt SMD5630 as the light source and aluminum alloy for the shell. The external cover is oxidation brushed finishing, outstanding performance and better Heat Dissipation with elegant appearance. The main features include low heat, lower power consumption, energy sacing, long lifespan etc. White, Warm white and Cool white are available. lt is easy to install and use with external LED Driver.
Specifications :
Technical Parameter:
| Model Name |
GH-DLC-12W |
| Power Consumption |
12W |
| Input Voltage |
AC85 ~265V (50-60Hz) |
| Luminous Flux |
12W |
3000K |
>1000LM |
| 4500K |
>980LM |
| 6000K |
>930LM |
| LED Chip |
Samsung |
| LED Light Source |
30PCS SMD5630 |
| Driver |
External Isolated Constant Current Driver |
| Beam Angle |
120° |
| CRI |
RA85 |
| Total Harmonic Distortion |
≤15％ |
| Power Factor |
≥ 0.95 |
| Power Supply Efficiency |
>90％ |
| Protection Class |
IP44 |
| Color Temperature |
2700~7500K |
| Dimension |
GH-DLC-12W |
| Cut Size |
Ø123mm (4Inch) |
| Material |
Aluminum+Frosted Acrylic Cover |
| Finishing |
White + Black |
| Lamp Head |
Fixed |
| Installation |
Recessed |
| Operating Temperature |
-20°~ +50° |
| Lifespan |
50,000 Hours |
| Certificate |
CE, RoHs |
| Warranty |
3 Years |
| Packing |
20pcs/9kg/0.04m3/Box L32*W32*H43cm |
| Available Wattage In This Series |
8inch 40W/30W, 6inch 20W, 5inch 15W, 4inch 12W, 3inch 5W
|
Applications:
Shopping Malls, Stores, Building, supermarkets, hotels, exhibition rooms, museums, display windows, restaurants, art halls, offices, reading rooms etc.
After Sales Service:
The product comes with 5 years warranty. Within the warranty period, if the product has a failure occurring under normal usage Ground Halo will provide full tecnical help, free maintenance service or change the product for you based on proof- documents and invoice (copy) of failure product.
Term of Trade:
1. Payment: T/T 30% deposit, 70% before shipment ,L/C ,western union or paypal.
2. Lead time : Within 7 working days after receiving the deposit
3. Samples: Can be ready in 5 working days once payment received
4. Shipping port: Shenzhen, China
5. Discounts : We offer discount for large quantity
6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand etc.
