Place of Origin: | Shenzhen, China |
Brand Name: | Xintianwell |
Certification: | CE/PSE/RoHS |
Model Number: | XTFLA-250W |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiation |
Packaging Details: | 1pcs 48*35*20cm |
Delivery Time: | 7-14 working days after received your payment |
Payment Terms: | T/T, Western Union |
Supply Ability: | 3,000pcs per month |
Power: | 250W | Luminous Flux: | 27500lm ±5% |
---|---|---|---|
Chip Type: | COB | Color Temperature: | 3000-6000K |
Driver: | Waterproof Inside Driver | Input Voltage: | AC100-277V / AC 180-260V |
CRI: | >75 | Power Factor: | >0.95 |
Size: | 454*322*186mm | Shell Color: | Black Or White Or Silvery |
Reflector: | Nanostructured Coating | ||
Highlight: | led street lamps |

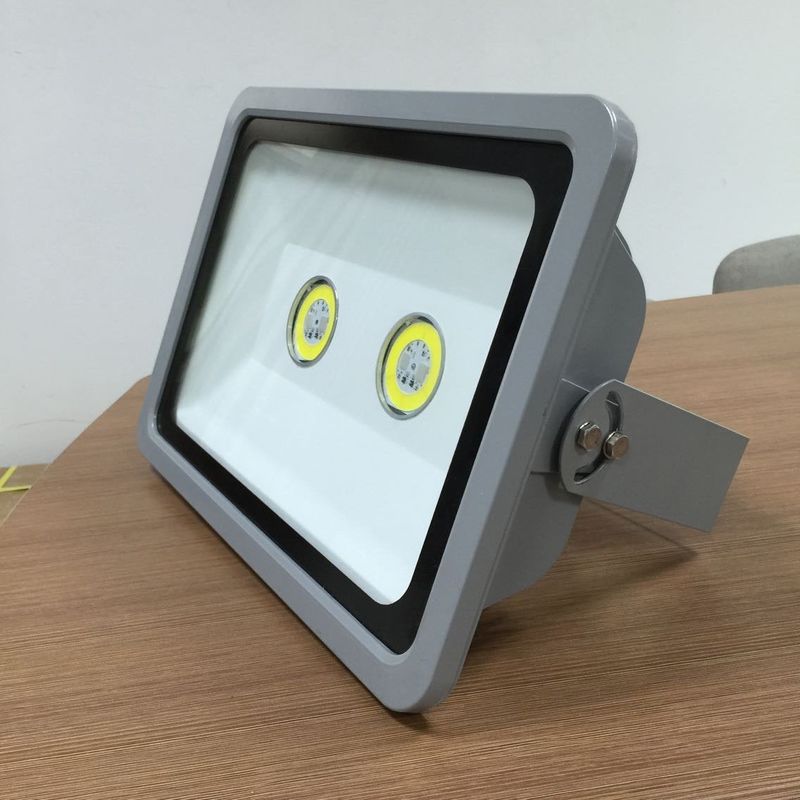

250Watts Waterproof Outdoor LED Flood Lights High Efficiency CRI 75 COB
Quick Details:
Specifications:
Item Type |
XTFLA-250W |
Power |
250W |
Replacement |
500-800W |
Input Voltage |
AC180-260V / 100-277V |
Frequency |
50 / 60Hz |
Size |
W454*H322mm |
Chip Type |
COB |
LED Quantity |
2 pcs |
Luminous Flux |
22000lm ±5% |
Light Efficiency |
110 lm/w |
Color Temperature |
3000-6000K |
Color Rendering Index |
>75Ra |
Beam Angle |
160° |
Working Temperature |
-30℃~60℃ |
Working Lifetime |
40,000 hours |
Material of Cover |
Anti-explosion Glass |
Cover Type |
Transparent |
Lamp Shell Color |
Black or White or Silvery |
Material of Shell |
Aluminum Alloy |
Driver |
Waterproof Internal Driver |
Lamp Weight:G.W./N.W. |
10.2kg/9.8kg |
Pcs/CTN |
1pcs/Carton |
Carton Size(1 pcs) |
480*350*200mm |
Description:
1, Aluminum Alloy Chassis is good for dissipating the heat;
2, Using liquid alloy material between the chips and chassis, it can distribute the heat quickly.
3, Not only have a driver on the rear cover but also the COB has driver, if the main driver dose not work, the driver on the COB will start working to keep lighting;
4, The driver has a unique automatic limiting current function, which can automatically reduce the current
and voltage when the temperature reaches the highest temperature;
5, There are many chips on the COB, some will work and some won’t work normally, but if the operating chips are broken, that “unwork” chips will start to work for protection;
6, Using excellent explosion-proof glass cover, more safety in use.
7. Using Nanostructured Coating on the reflector is one of new-tech in the world.
Dimension of this 250W LED Flood Light:
Installation of this 200 W LED Flood Light:
Applications:
