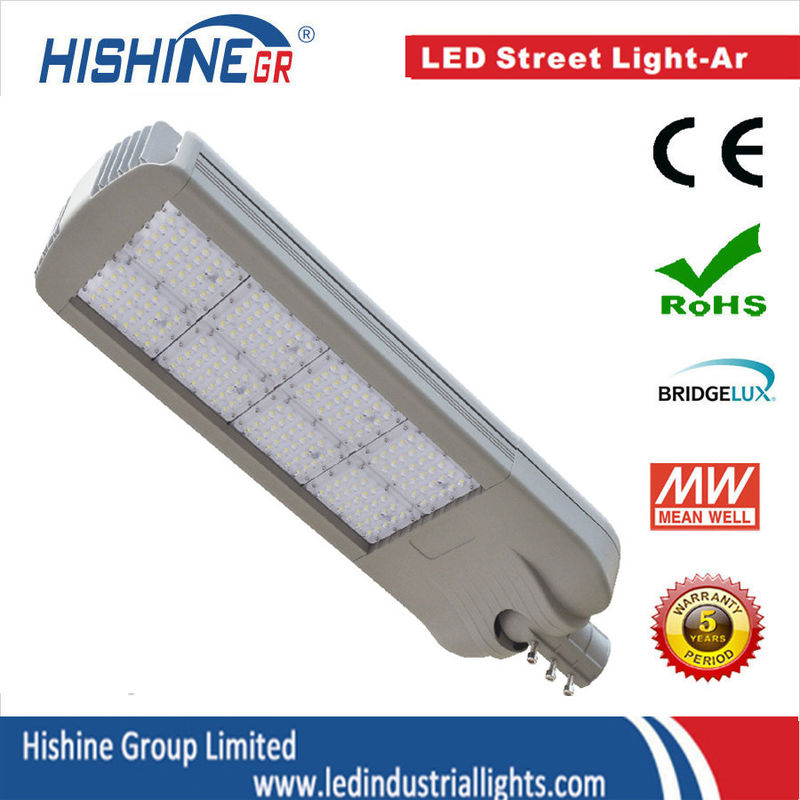

High Way 240W Outdoor LED Street Lighting Fixtures Modular Designed
Quick Details
1.LED: 45MIL Bridgelux chip Super Brighter LED, reach to 110lm/w for lamps
2.Meanwell driver choice:High efficiency and power factor,PF:0.95
3.Long life time,more than 50000 hours working time;
4.IP65 Grade, good for both indoor and outdoor waterproof projects.
5.Whole body in big heat sink, perfect 3D radiating.
6.The PTTE and fin-shaped heat sink are special sparckle.
7.Die-casting Aluminum Body, Anti-corrosion screws/accessaries
8.Very strong package allows long way international shipment
Descriptions:
1) Streamline configuration, graceful appearance combine with the city street environment well;
2) Excellent self-cleaning function;
3) Die-cast aluminium alloy housing guarantees its high soundness;
4) Project rectangular light spot with bat-wing distribution curve flux and keep good light evenness within 40m distant;
5) Excellent heat radiation character reach a temperature raise below 23K;
6) Tool free for maintenance, easy to install it;
7) Horizontal or vertical installation are available;
8) Original America-imported Bridgelux chips with excellent luminous efficiency;
9) Long life power driver ensures above 50000 hours use-life and has short, open-circuit and over-heat protection.
10) Our products had adopted ISO9001:2000 Quality System Authorities and passed CQC, CE, etc.
Specification:
|
Product Name
|
LED Street Light 240w
|
|
ITEM:
|
HS-SL240W-D
|
|
Input voltage
|
AC85-295V
|
|
Chip Brand
|
Bridgelux
|
|
Driver Brand
|
Meanwell
|
|
Frequency
|
50/60HZ
|
|
Power Factor(PF)
|
>0.9
|
|
Total harmonic
Distortion(THD)
|
<20%
|
|
Power efficiency
|
>0.9
|
|
LED power dissipation
|
240W
|
|
Electric dissipation
|
240W
|
|
LED luminescence
efficiency
|
>105Lm/W
|
|
LED original
luminous lux
|
24000-25000Lm
|
|
Lights efficiency (%)
|
≥90%
|
|
color temperature(CCT)
|
Cool white:6500-7000K
Pure white:5000-6500K
Warm white:3500-4500K
|
|
Color radiation index(CRI)
|
Ra>78
|
|
The strongest
lighting angle
|
Horizontal axis:120°~140
vertical:45°~60°
|
|
LED temperature
|
70°C±10%(Ta=25°C)
|
|
Working temperature
|
-30°C-50°C
|
|
Working humidity
|
10%-99%RH
|
|
Stock temperature
|
10°C-85°C
|
|
Life span
|
>50.000Hrs
|
|
Lamp Size
|
928*338*12mm
|
|
N.W.
|
16.6kg
|
|
IP Degree
|
IP65
|
Application:
LED Street Light is widely used for roadway, speedway, aerodrome, dock, bus station, square, street, park, courtyard
Primary Competitive Advantages:
Fast delivery 5-7 working days after receive the payment
5 years warranty
112w LED Street Light Small MOQ
Energy saving products
Meanwell driver and Bridgelux chip
